# DB Explorer: Remote Objects

## Remote Source Creation:

### ABAP Adapter based Remote Source:

#### Prerequisites:

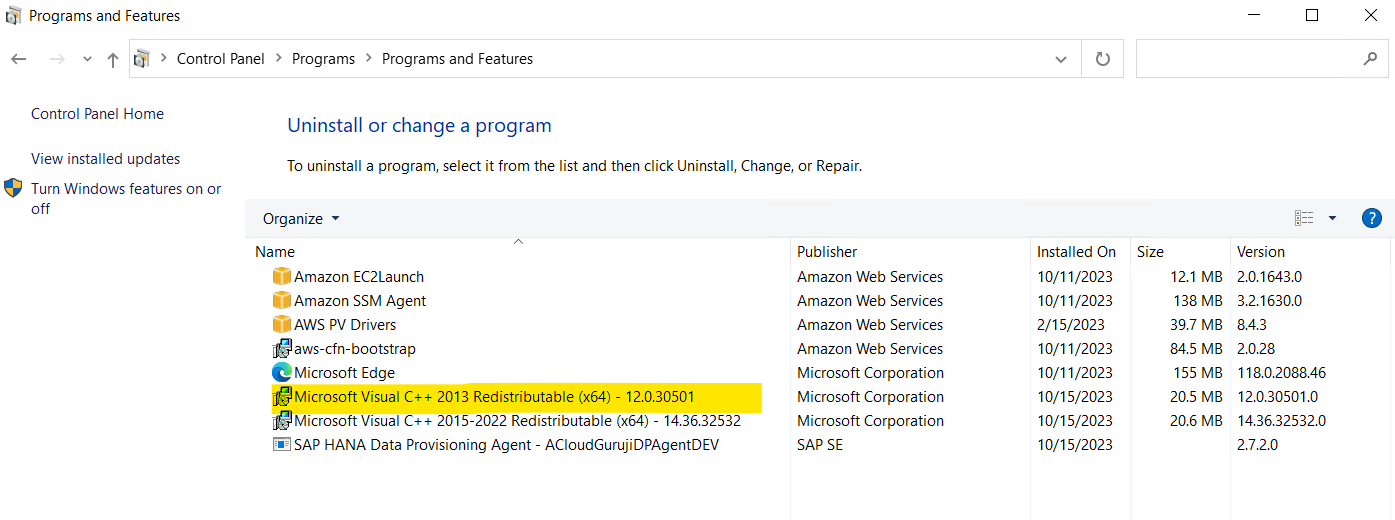

#### 1. Visual C++ Redistributable Packages for Visual Studio 2013

Download and install the Visual C++ package from below.

{% embed url="<https://www.microsoft.com/en-in/download/details.aspx?id=40784>" %}

<figure><img src="https://3545974627-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2vGcyp3YAbFRXEjfXcVG%2Fuploads%2Fgit-blob-23cebdd1c65e5c25c89aa7948d50354d4d34947b%2Fimage%20(739).png?alt=media" alt=""><figcaption></figcaption></figure>

#### 2. Java Connector:

The SAP JCo is available on the [SAP Software Downloads Center![Information published on SAP site](https://help.sap.com/doc/00f68c2e08b941f081002fd3691d86a7/release/en-US/themes/sap-light/img/sap_link.png)](https://help.sap.com/docs/link-disclaimer?site=https%3A%2F%2Flaunchpad.support.sap.com%2F%23%2Fsoftwarecenter) SAP Software Download Center. Search for Java connector and download the 64-bit Java connector for the appropriate operating system.

{% hint style="info" %}
You must ensure that the version of the SAP JCo you download is compatible with your on-premise SAP system.
{% endhint %}

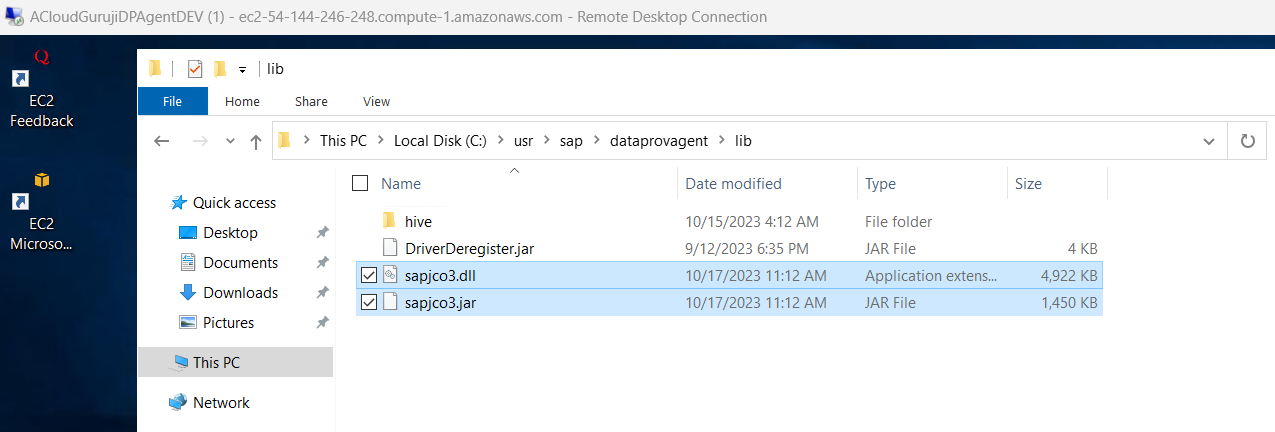

Copy files into one of the following locations:

On a Windows server, put the <mark style="background-color:yellow;">sapjco3.jar</mark> and <mark style="background-color:yellow;">sapjco3.dll</mark> files in the lib folder\\

<figure><img src="https://3545974627-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2vGcyp3YAbFRXEjfXcVG%2Fuploads%2Fgit-blob-761727addb5826d282b8a6269694733975839b10%2Fimage%20(740).png?alt=media" alt=""><figcaption></figcaption></figure>

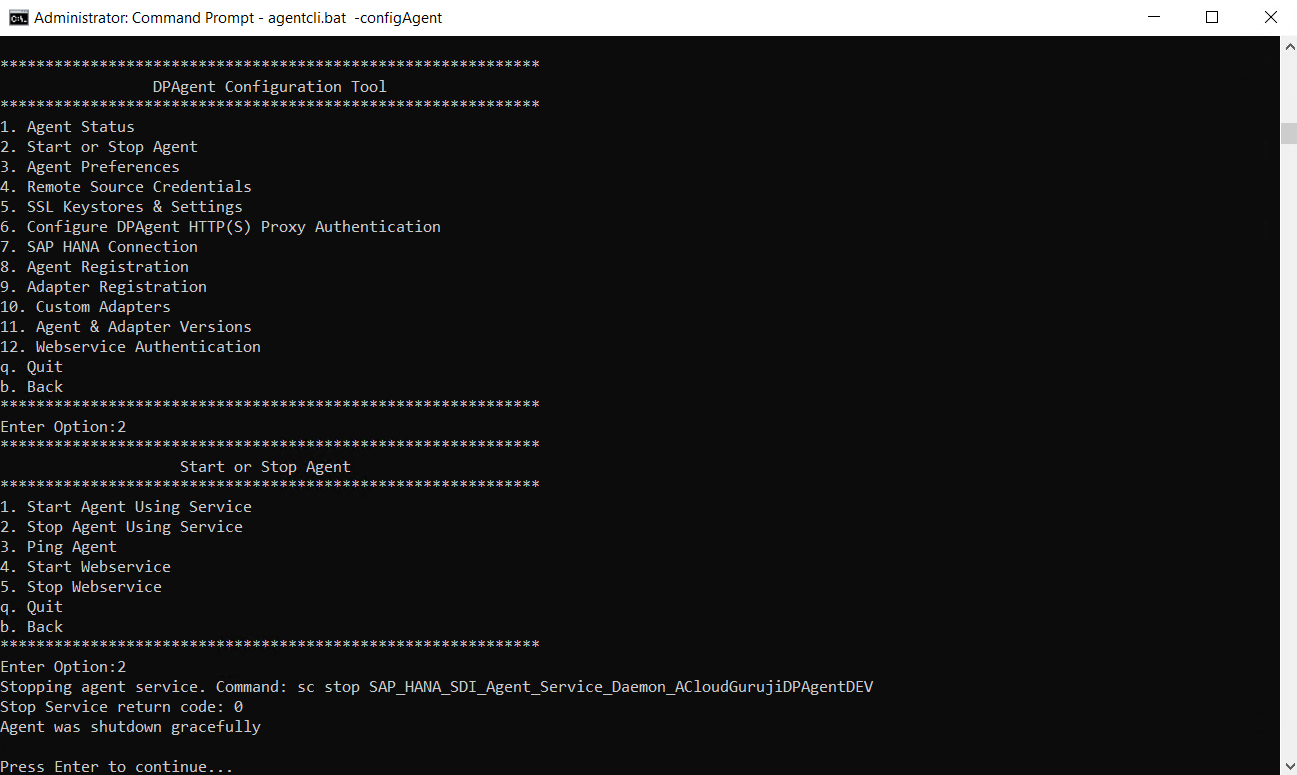

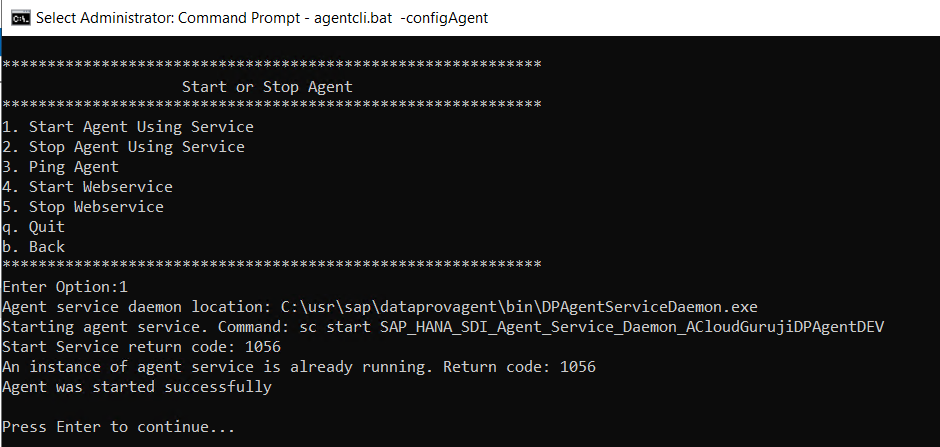

If you are add ing those supporting files latter on (after all the config process), then please restart the DPAgent once to get a working Remote Source:

<figure><img src="https://3545974627-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2vGcyp3YAbFRXEjfXcVG%2Fuploads%2Fgit-blob-d2ac6d3295c8d7d8c92f7972625d77616ddccd28%2Fimage%20(746).png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3545974627-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2vGcyp3YAbFRXEjfXcVG%2Fuploads%2Fgit-blob-29444f3dab485238ac82fc564901c3b2f1d46b92%2Fimage%20(747).png?alt=media" alt=""><figcaption></figcaption></figure>

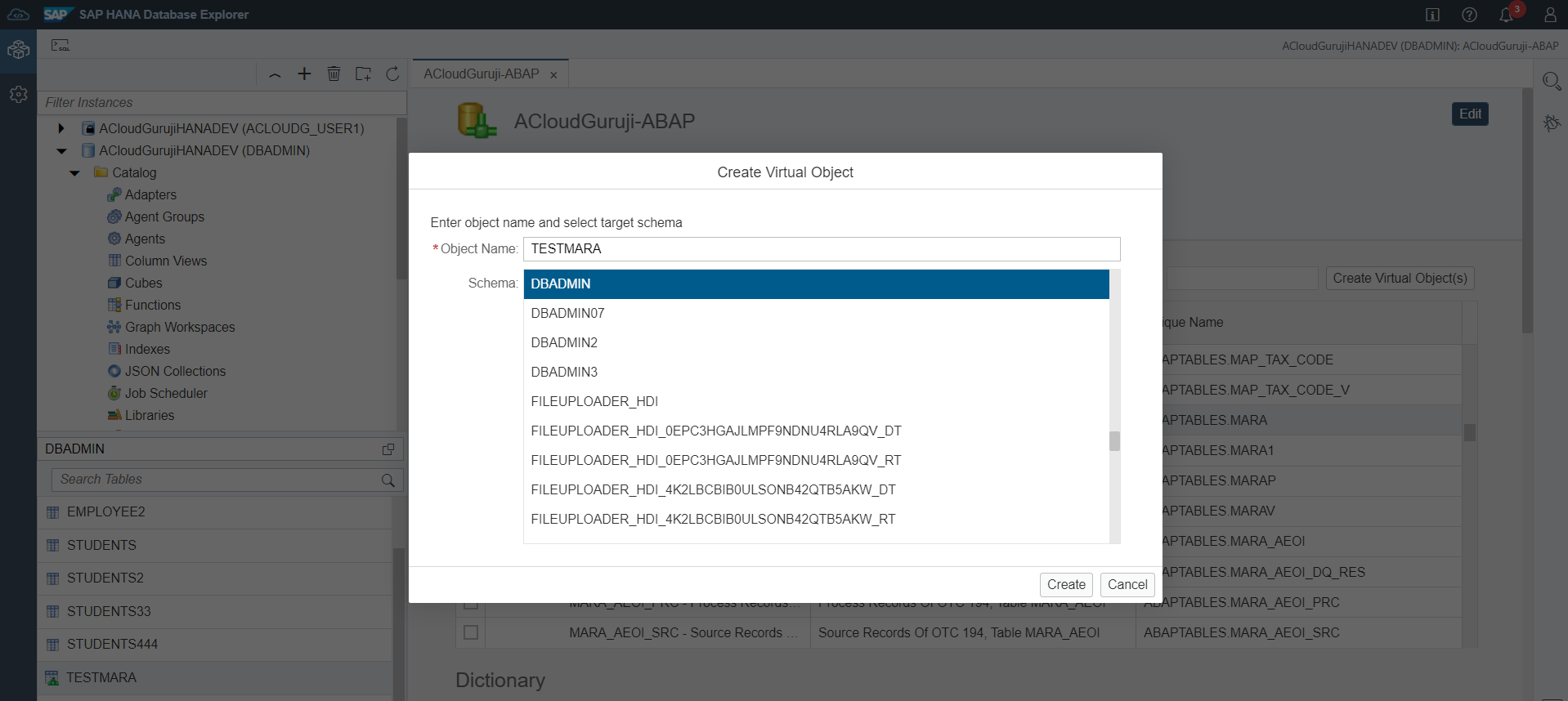

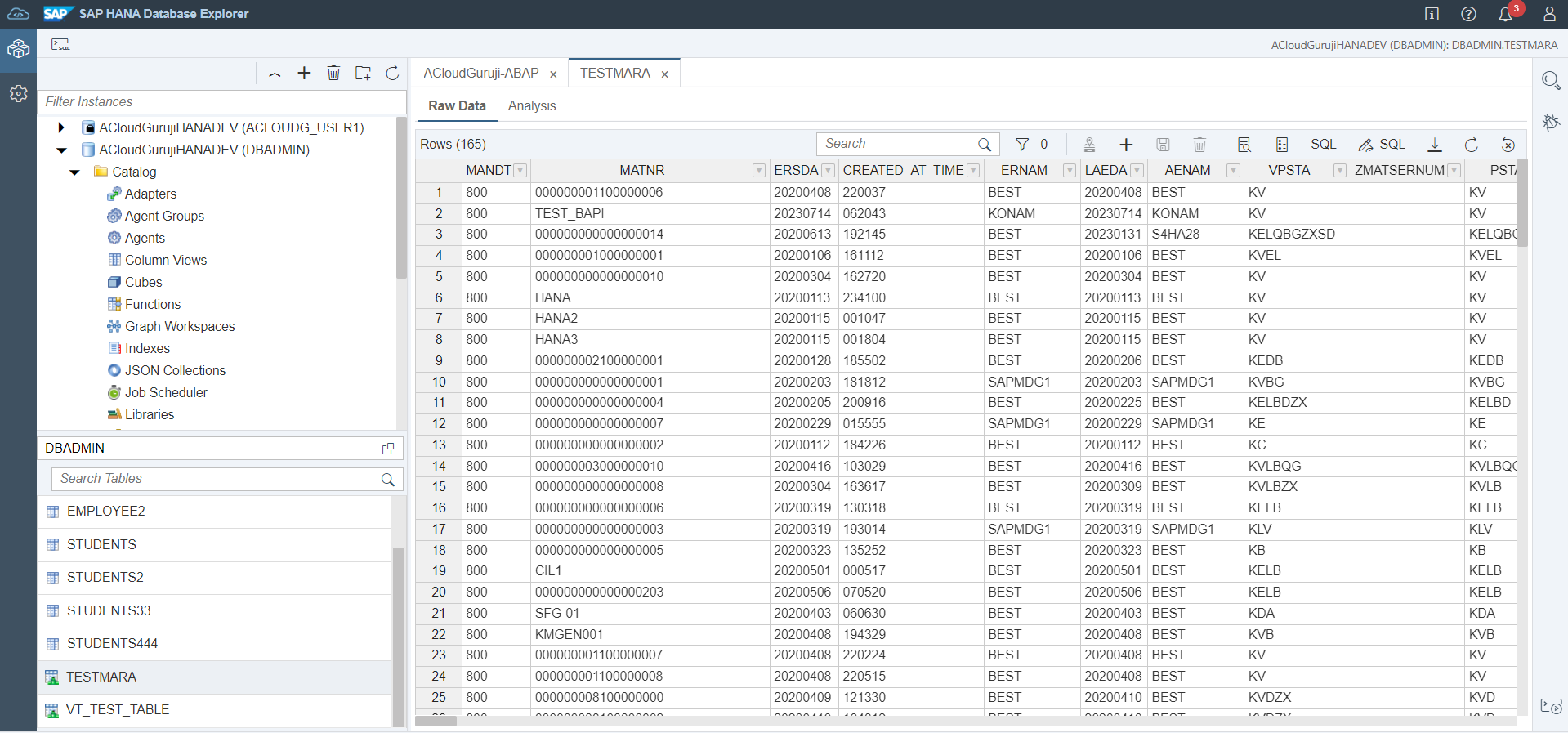

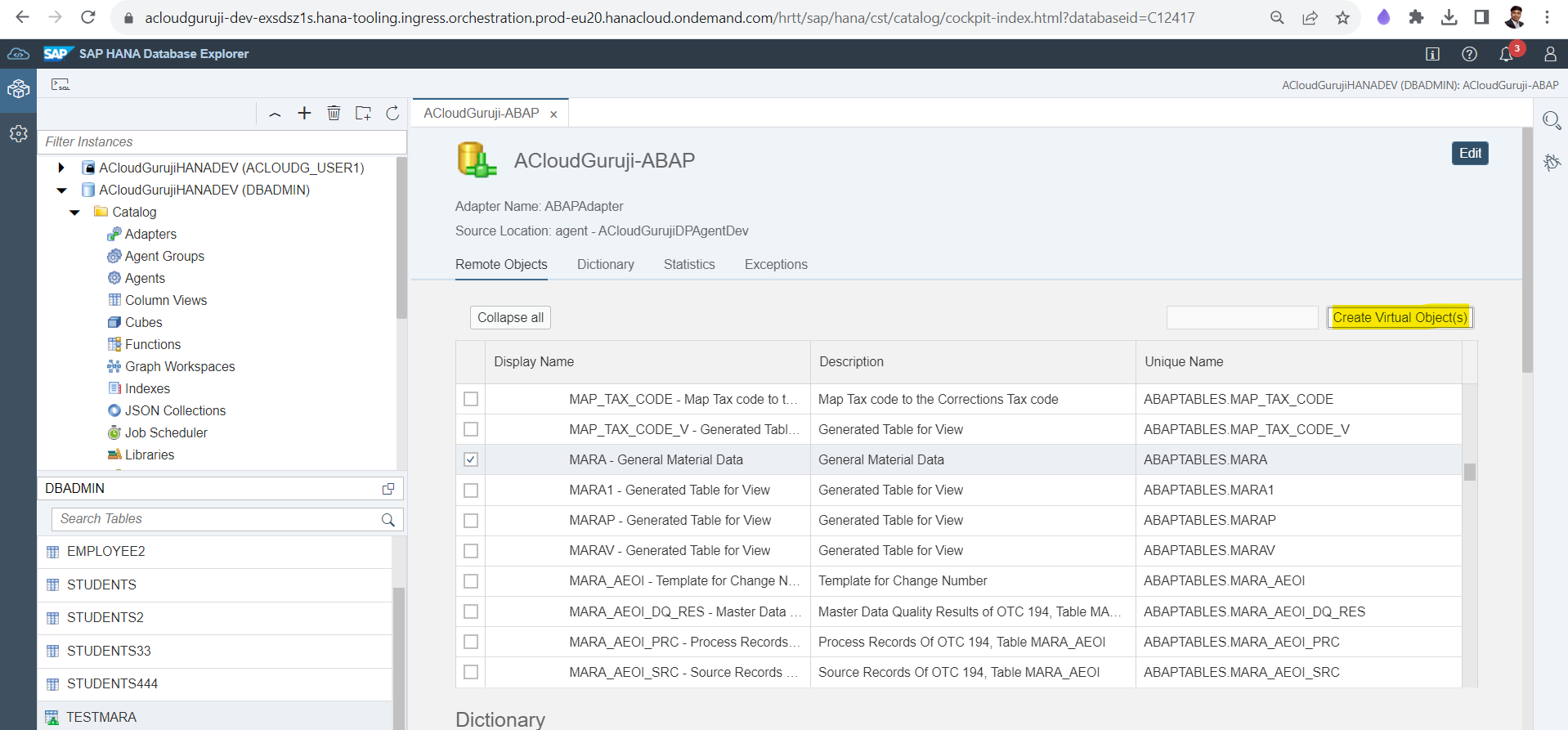

## Virtual Table Creation:

<figure><img src="https://3545974627-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2vGcyp3YAbFRXEjfXcVG%2Fuploads%2Fgit-blob-3010549afd3f637e1276e23c5fd6f1be90935058%2Fimage%20(742).png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3545974627-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2vGcyp3YAbFRXEjfXcVG%2Fuploads%2Fgit-blob-715abf30281af9e5501bb195a15d20d9a57b3731%2Fimage%20(743).png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3545974627-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2vGcyp3YAbFRXEjfXcVG%2Fuploads%2Fgit-blob-0f67f64c6d8a17e9be8db8b011c92d3eed247140%2Fimage%20(744).png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3545974627-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2vGcyp3YAbFRXEjfXcVG%2Fuploads%2Fgit-blob-a998ad3ef3f829b77d51545cc7b9fe81035804d6%2Fimage%20(745).png?alt=media" alt=""><figcaption></figcaption></figure>
